Ultra thin scissor car lift DL-4.0CB

lifting capacity：4T

lifting height：110-1850mm

table length：1485-2040mm

table width：660mm

power supply：2.2kw，220V/1PH，380V/3PH

IOS9001 Certification

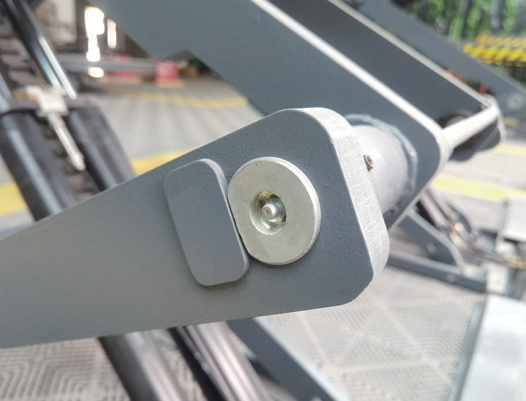

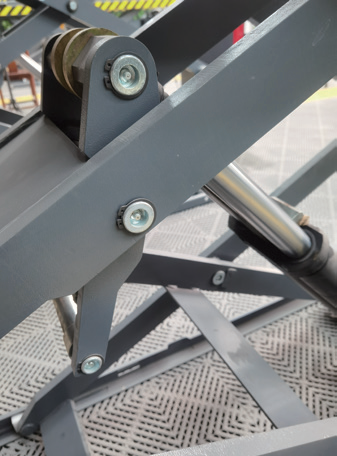

◆ New high-strength alloy booster arm, computer 3D dynamic simulation design, steady

descent under full load, 30CBL approach bridge can be used as extension plate, non spliced

integral bottom plate, solid steel X-frame pneumatic mechanical safety lock.

◆ Hydraulic synchronization, dual hydraulic system, hydraulic lock and mechanical triple

safety device, automatic unlocking when descending.

◆ High speed fully automatic CNC lathe is used for processing oil cylinder components to

ensure excellent concentricity and smoothness, and the cylinder barrel is rolled with

mirror surface.

◆ All imported seals and ball valves are equipped with hydraulic explosion-proof devic

◆ Precise laser cutting technology, accurate size, smooth cut and high finish

◆ Shot blasting surface treatment and high temperature spraying treatment ensure

durability.

◆ The supportable approach bridge can be applied to vehicles with longer wheelbase.

◆ All shafts are equipped with wear-resistant bearings.

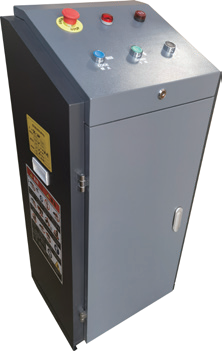

◆ 24V safety control circuit.
