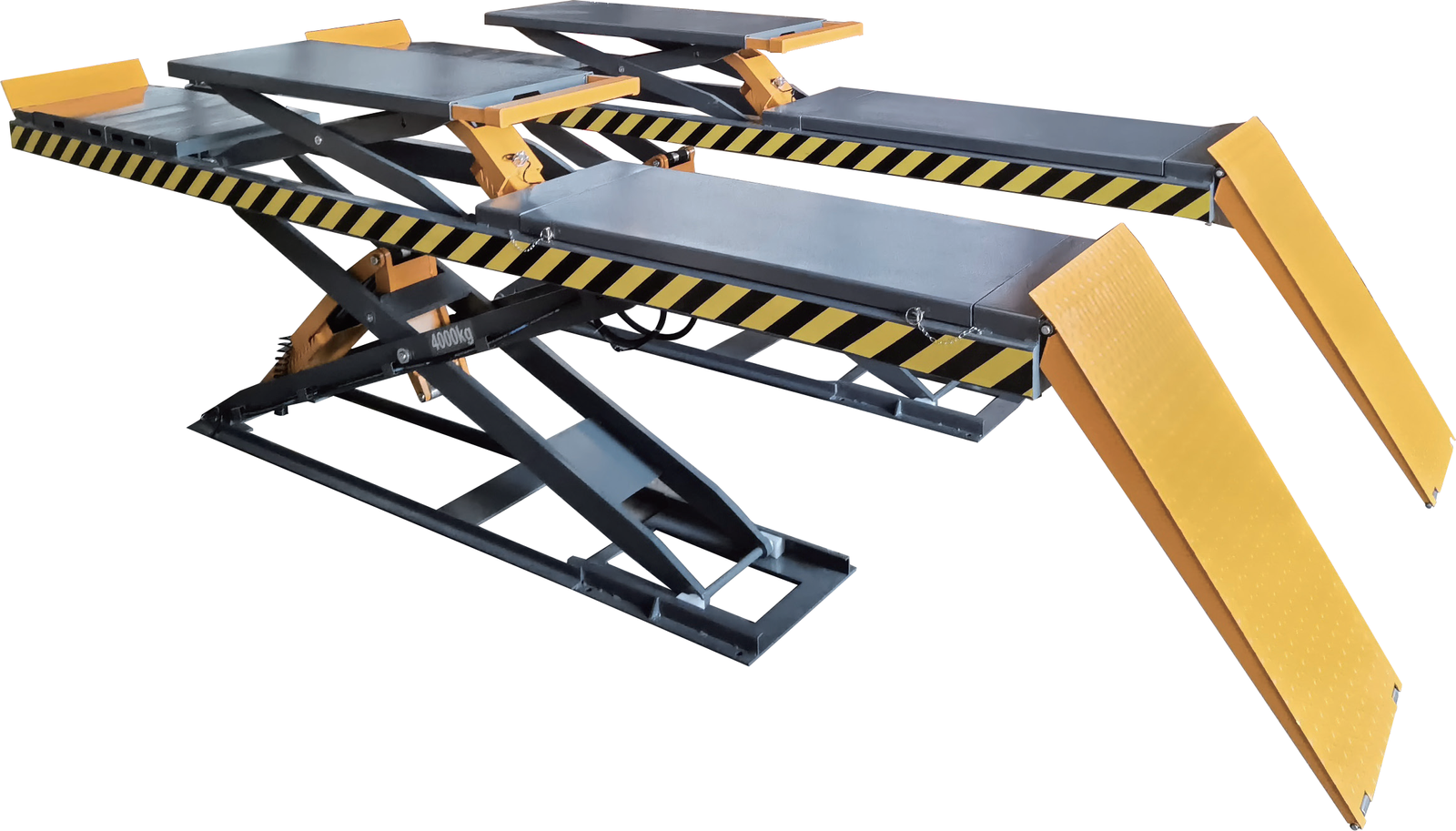

Ultra thin main-sub scissor car lift DL-4.0CBD

main scissor lifting capacity：4T

sub scissor lifting capacity：3T

main scissor lifting height：200-1680mm

sub scissor lifting height：450mm

main scissor table length：4500mm

main scissor table width：660mm

sub scissor table length：1515-1680mm

sub scissor table width：600mm

power supply：2.2kw，220V/1PH，380V/3PH

air supply：0.4-0.6Mpa

IOS9001 Certification

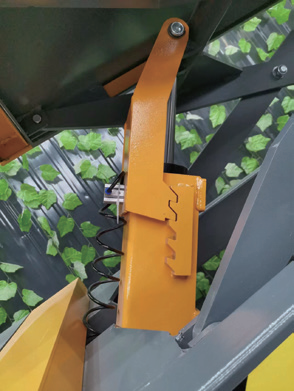

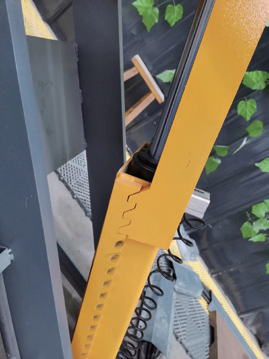

◆New high-strength alloy booster arm, computer 3D dynamic simulation design, steady descent

under full load, standard movable boarding, solid steel X-frame pneumatic mechanical safety lock.

◆ 6-cylinder design of the whole machine, hydraulic synchronization, dual hydraulic system,

hydraulic lock and mechanical triple safety device, and automatic unlocking when descending.

◆ High speed fully automatic CNC lathe is used for processing oil cylinder components to ensure

excellent concentricity and smoothness, and the cylinder barrel is rolled with mirror surface.

◆ Fully imported seals and ball valves.

◆ Precise laser cutting technology, accurate size, smooth cut and high finish.

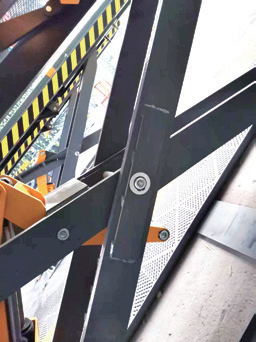

◆ X frame is made of high-quality solid steel by laser cutting, with high strength, corrosion

resistance and deformation resistance

◆ Shot blasting surface treatment and high temperature spraying treatment ensure durability.

◆ Single side tensile shear.

◆ All shafts are equipped with wear-resistant bearings and macromolecule wear-resistant

sliding blocks.

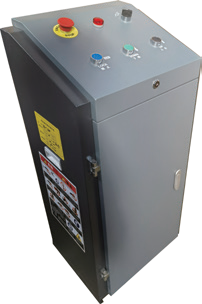

◆ 24V safety control circuit.
