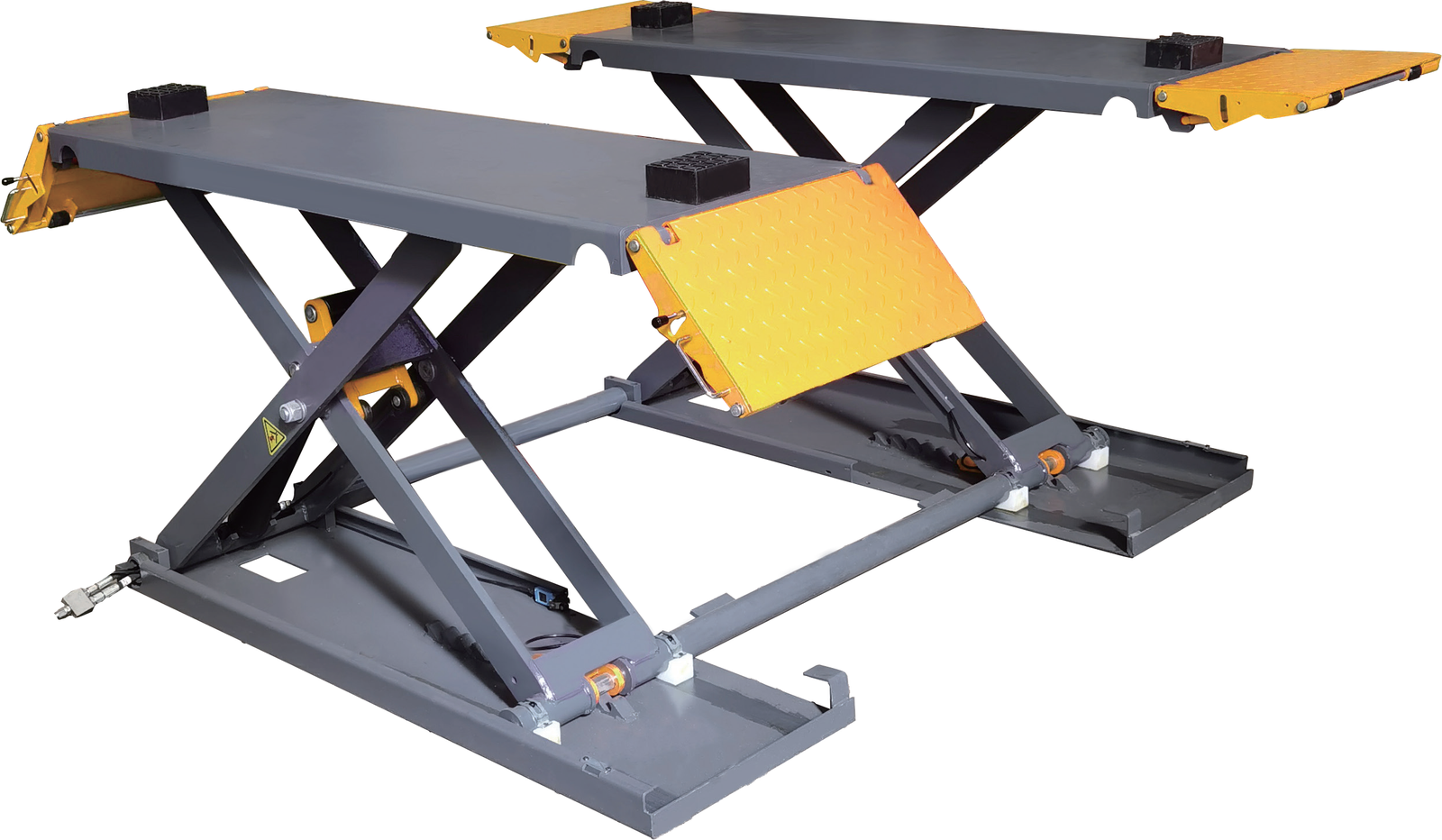

Movable scissor car lift DL-3.5YD

lifting capacity：3.5T

lifting height：110-1200mm

table length：1400-1940mm

table width：520mm

total width：1885mm

power supply：2.2kw，220V/1PH，380V/3PH

IOS9001 Certification

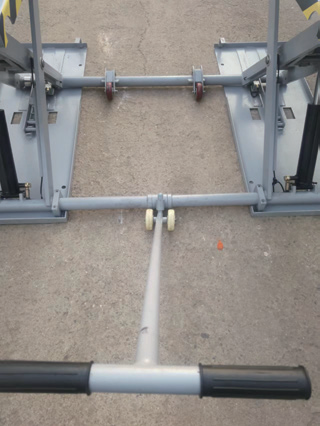

◆ Movable design, more convenient to use.

◆ The mechanical locking device automatically locks when it rises, and pneumati

cally unlocks when it falls, which is safe and reliable.

◆ Precise laser cutting technology, accurate size, smooth cut and high finish

◆ Shot blasting surface treatment and high temperature spraying treatment

ensure durability.

◆ All movable joints are equipped with self lubricating bearings, and regular

maintenance will prolong the service life.

◆ The supportable approach bridge can be applied to vehicles with longer

wheelbase.

◆ The connecting rod in the middle ensures stability and synchronization.
