Product Specifications

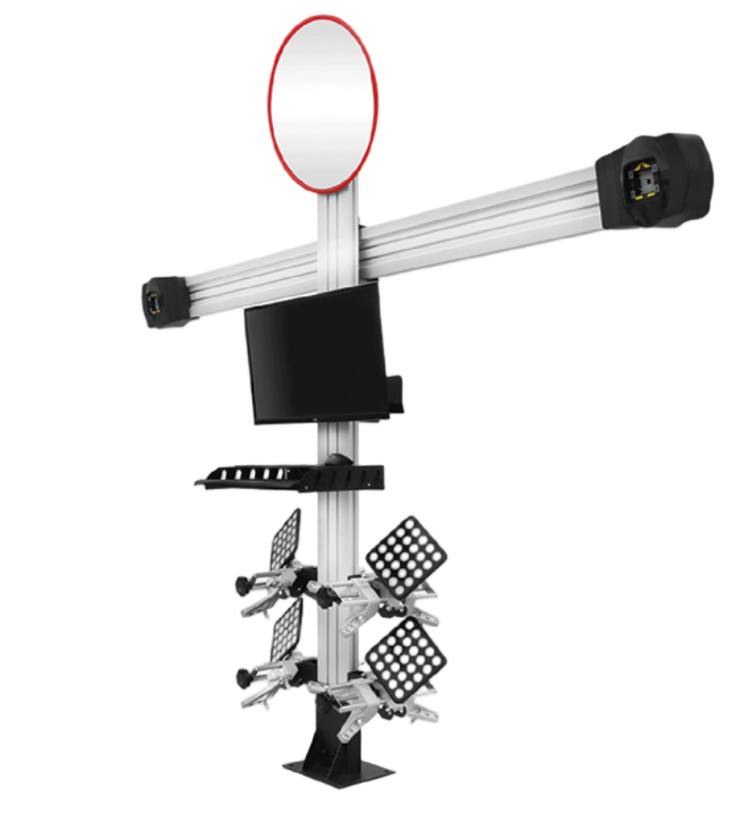

- Product Name: Wheel Alignment
- Functional Features: Integrated aluminum alloy frame, sturdy, aesthetically pleasing, and durable
- Applicable Lifts: Large scissors, four-post, and pit lifts
| Parameter | Measurement Accuracy | Measurement Range |
|---|---|---|
| Camber | ±0.01° | ±10° |
| Caster | ±0.02° | ±20° |
| Front Wheel Inclination | ±0.01° | ±20° |
| Toe | ±0.01° | ±20° |
| Thrust Angle | ±0.02° | ±5° |
| Wheel Track | ±2mm | |
| Wheelbase | ±2mm |
- Equipment Dimensions: Length 670mm Width 910mm Height 920mm
- Packing Dimensions: Length 2800mm Width 320mm Height 370mm
- Net Weight: 130 kg
