Product Specifications

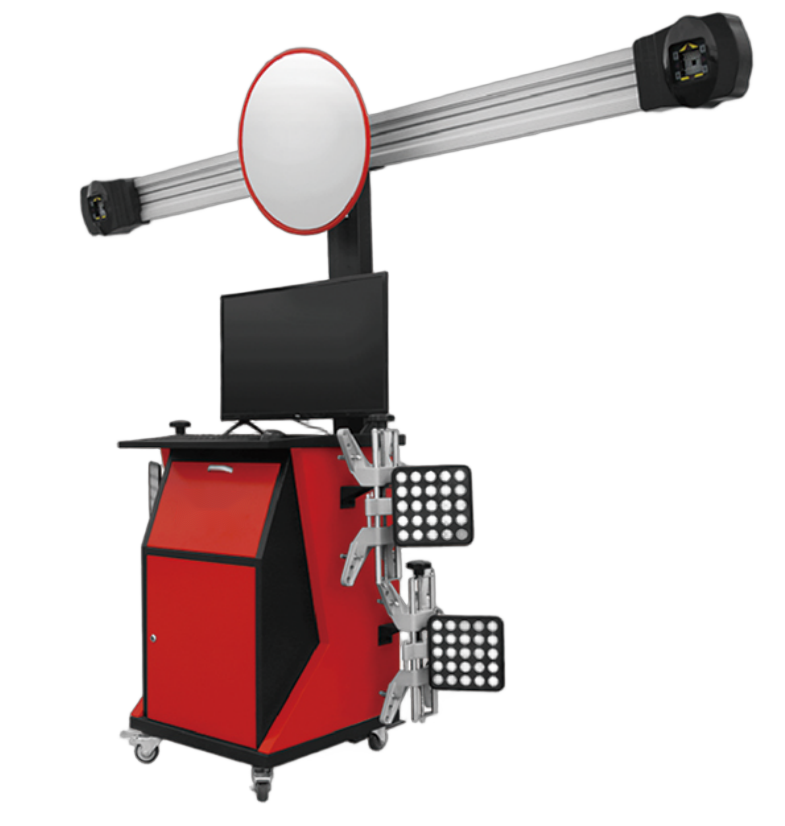

- Product Name: Wheel Alignment
- Functional Features: Modular cabinet with tool box, practical
- Applicable Lifts: Large scissors, four-post, and pit lifts
Parameters, Measurement Accuracy, and Measurement Range
| Parameter | Measurement Accuracy | Measurement Range |
|---|---|---|
| Camber | ±0.01° | ±10° |
| Caster | ±0.02° | ±20° |
| Front Wheel Inclination | ±0.01° | ±20° |
| Toe | ±0.01° | ±20° |
| Thrust Angle | ±0.02° | ±5° |
| Wheel Track | ±2mm | |
| Wheelbase | ±2mm |
Dimensions and Weight
- Equipment Dimensions: Length 650mm Width 600mm Height 1000mm
- Packing Dimensions:
- Length 910mm Width 1010mm Height 1190mm
- Length 2800mm Width 420mm Height 370mm
- Net Weight: 180 kg
