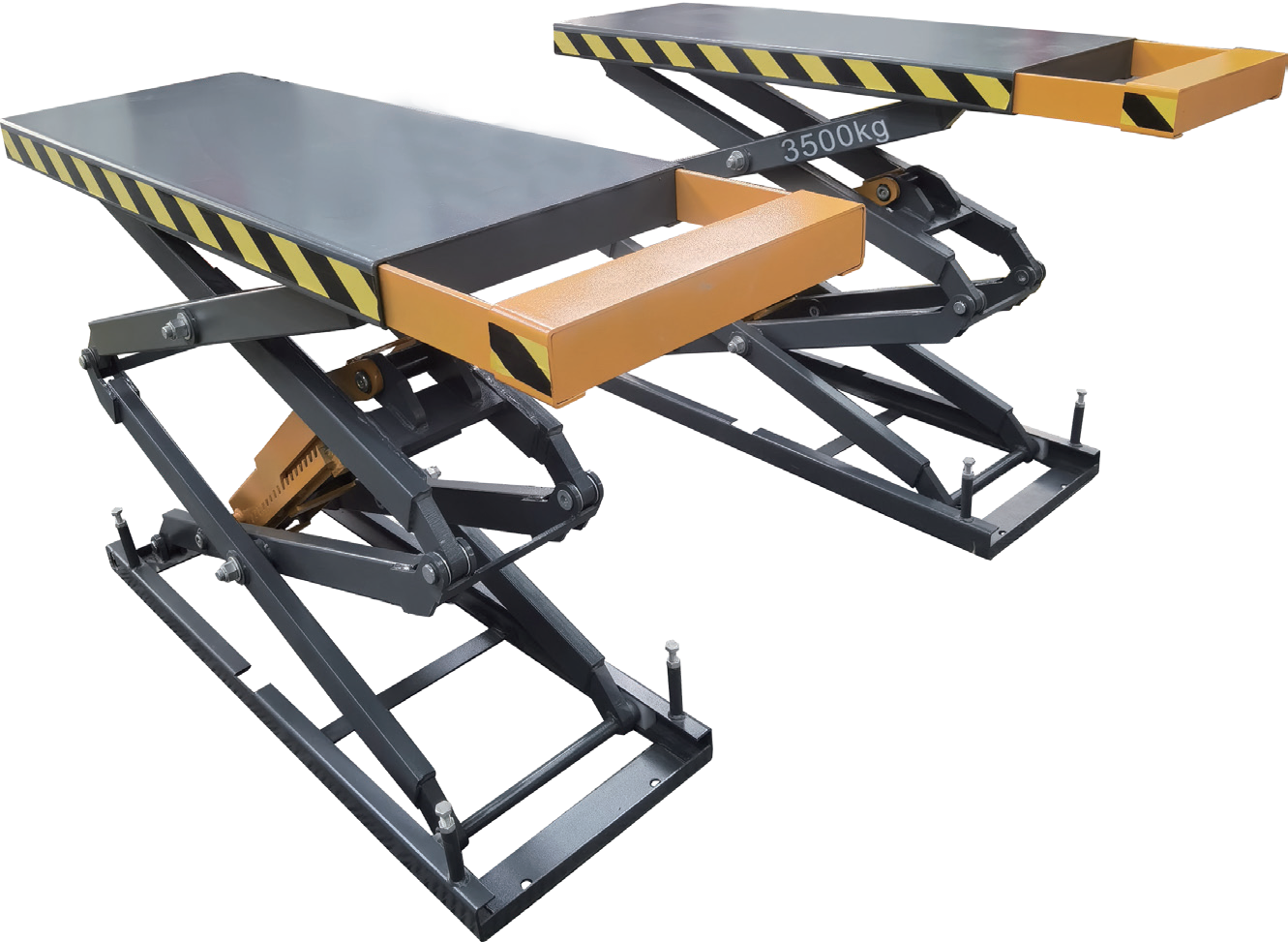

In ground scissor car lift DL-3.5DC

lifting capacity：3.5T

lifting height：330-2100mm

worktable length：1540-1740mm

worktable width：550mm

power supply：2.2kw，220V/1PH，380V/3PH

IOS9001 Certification

◆ Wear resistant polymer slider is used for walking, which is more stable, high-strength and

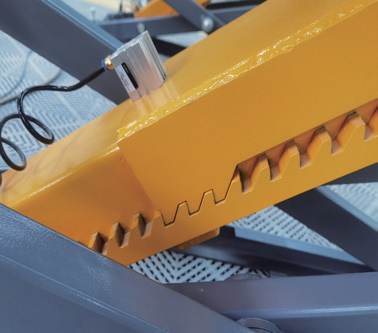

high-precision integrated non welding mechanical safety gear.

◆ Hydraulic synchronization, hydraulic lock and mechanical double safety device, automatic

unlocking when descending.

◆ High speed fully automatic CNC lathe is used for processing oil cylinder components to

ensure excellent concentricity and smoothness, and the cylinder barrel is rolled with mirror

surface.

◆ All imported seals and ball valves are equipped with hydraulic explosion-proof devices.

◆ Precise laser cutting technology, accurate size, smooth cut and high finish

◆ Shot blasting surface treatment and high temperature spraying treatment ensure

durability.

◆ Adjustable platform length.

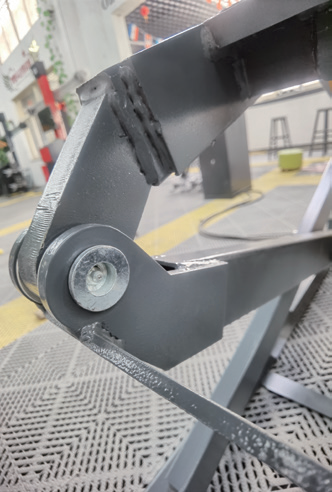

◆ All shafts are equipped with wear-resistant bearings.

◆ 24V safety control circuit.
