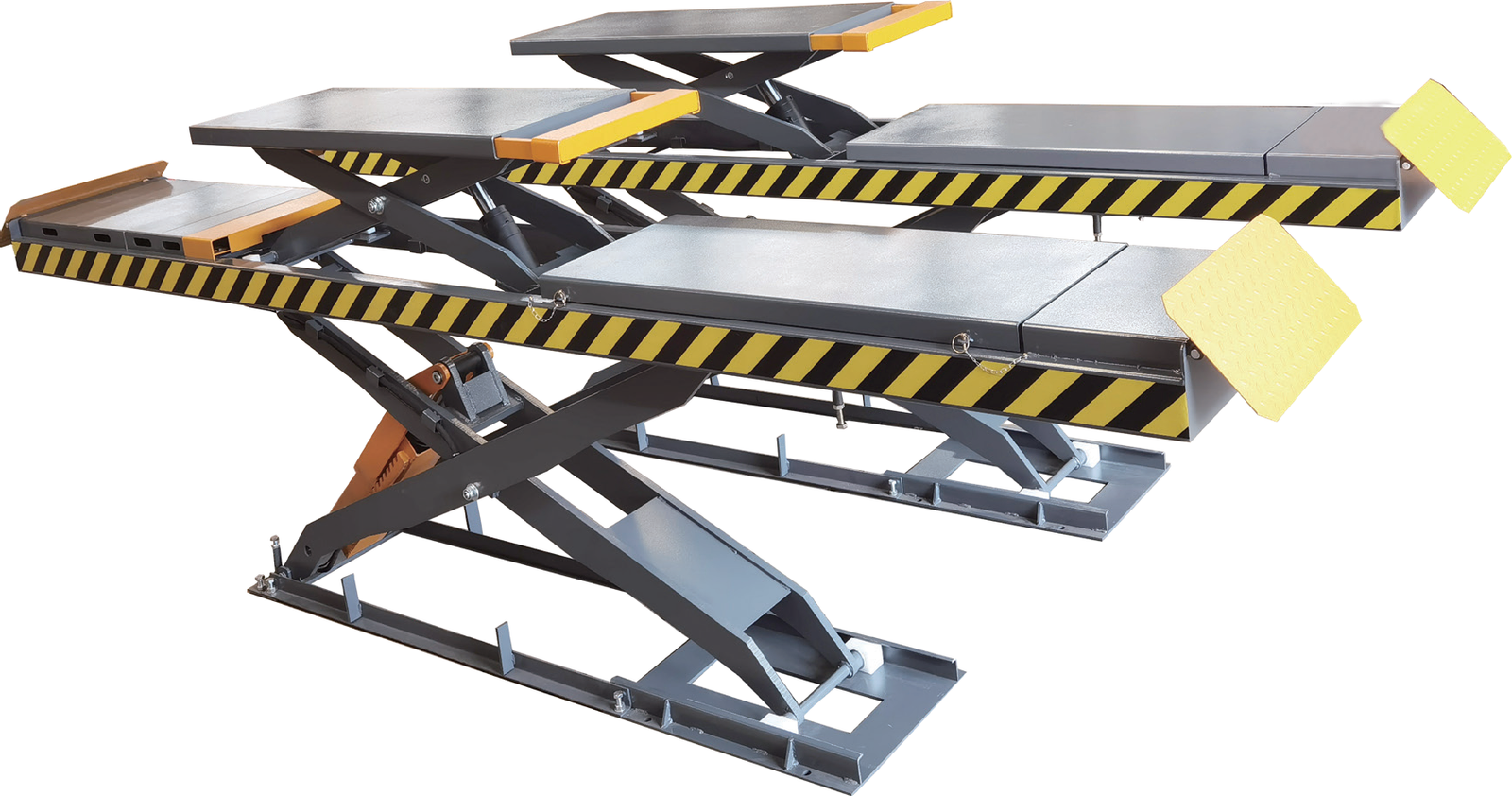

In ground main-sub scissor car lift DL-4.0DJ

main scissor lifting capacity：4T

sub scissor lifting capacity：3.5T

main scissor lifting height：330-1870mm

sub scissor lifting height：450mm

main scissor table length:4500mm

main scissor table width :620mm

sub scissor table length :1400-1630mm

sub scissor table width:550mm

motor power：2.2kw，220V/1PH，380V/3PH

air supply：0.4-0.6Mpa

IOS9001 Certification

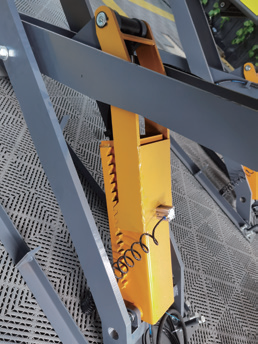

◆ Thickened solid steel X frame, embedded welding, more solid, thickened floor and floor rails,

high-strength and high-precision integrated non welding mechanical safety gear.

◆ Hydraulic synchronization, hydraulic lock and mechanical double safety device, automatic unlocking

when descending.

◆ High speed fully automatic CNC lathe is used for processing oil cylinder components to ensure excel

lent concentricity and smoothness, and the cylinder barrel is rolled with mirror surface.

◆ All imported seals and ball valves are equipped with hydraulic explosion-proof devices.

◆ Precise laser cutting technology, accurate size, smooth cut and high finish.

◆ The X frame is laser cut from high-quality solid steel, with high strength, corrosion resistance and

deformation resistance.

◆ Shot blasting surface treatment and high temperature spraying treatment ensure durability.

◆ Single side tensile shear.

◆ All shafts are equipped with wear-resistant bearings and macromolecule wear-resistant sliding

blocks.

◆ 24V safety control circuit.
