✅ Key Features
- Spacious Interior: 6900×3900×2650 mm – Ideal for trucks, buses, and heavy equipment
- Heavy-Duty Construction: Built for continuous industrial use
- High Power Output: 16.5 kW – Supports ventilation, heating, and filtration systems
- Wide Main Door: 3000×2600 mm – Easy access for large vehicles
- Quick Service Door: 650×1800 mm – Convenient entry for operators
- Efficient Work Volume: ~18 m³ – Designed for uninterrupted workflow
- Export-Ready: Container configuration available upon request
📐 Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | DB-500 |
| External Dimensions | 7000×4000×3200 mm (276″×157″×126″) |
| Internal Dimensions | 6900×3900×2650 mm (271″×154″×104″) |
| Main Door Size | 3000×2600 mm (118″×102″) |
| Service Door Size | 650×1800 mm (26″×71″) |
| Voltage/Frequency | 380 V / 50 Hz |
| Total Power | 16.5 kW |
| Internal Volume | Approx. 18 m³ |
| Gross Weight | Approx. 2 tons |
| Container Option | Available upon request |
📄 Product Description

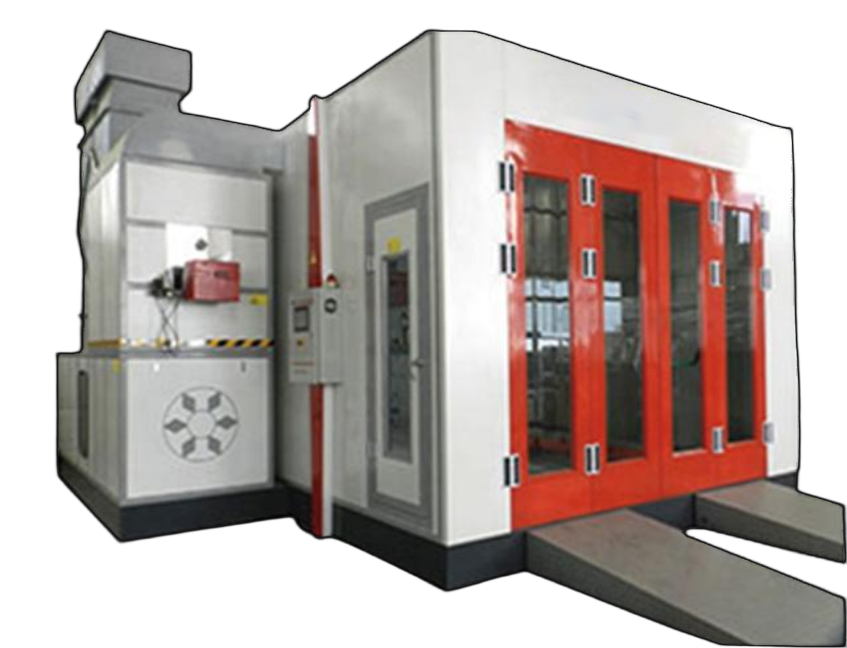

The DB-500 spray booth is engineered for high-volume industrial painting. Its oversized dimensions and robust power system make it ideal for commercial vehicles and heavy equipment. Whether for auto body shops or manufacturing facilities, the DB-500 delivers professional results, efficient workflow, and easy installation.
