| Maxi.lifting height： | 1100mm |
| work temprature: | -30°+50° |
| Lifting capacity: | 4500kg |
| Working voltage: | 380V/220V |
| Working frequency: | 460 times/minute |

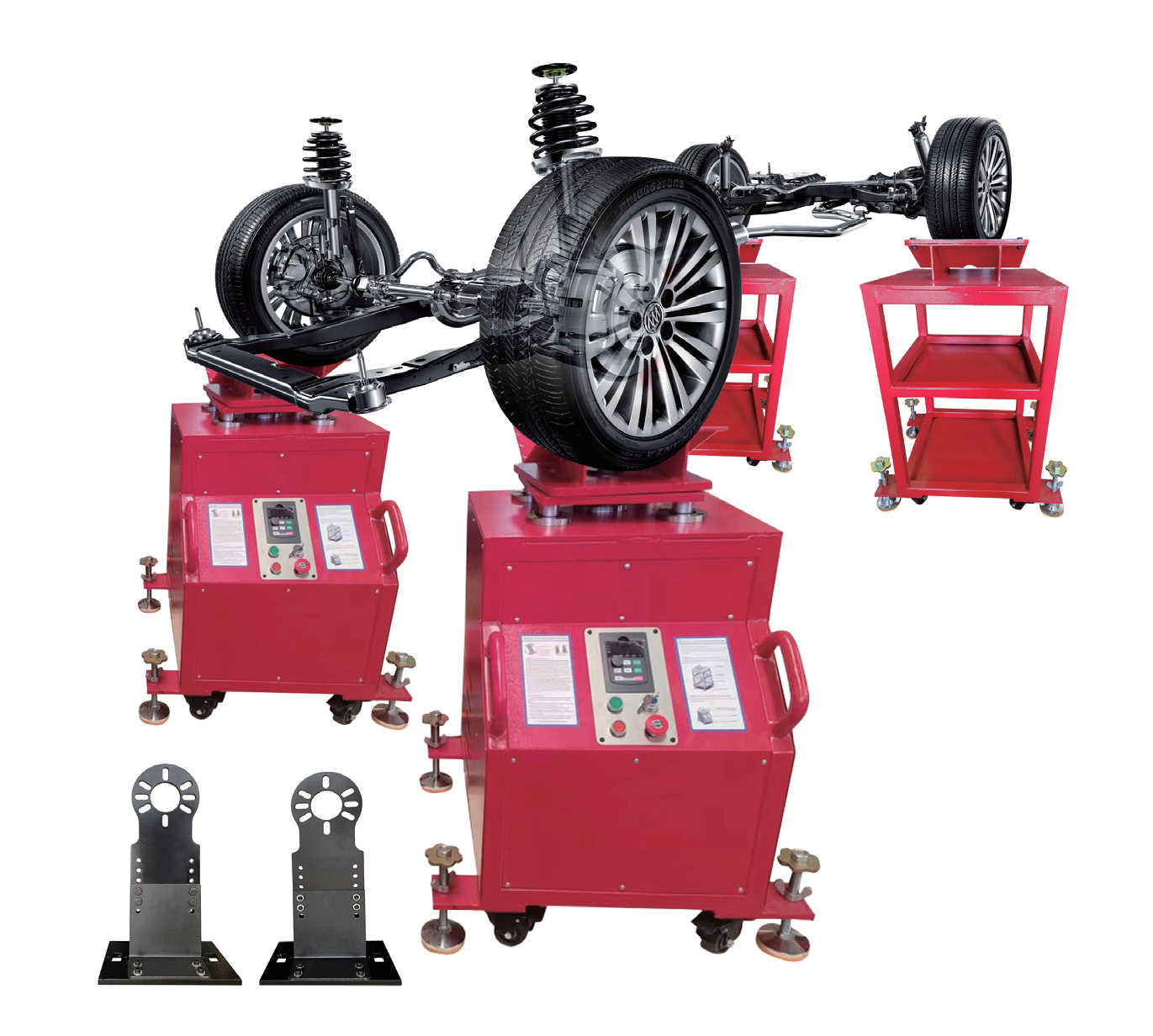

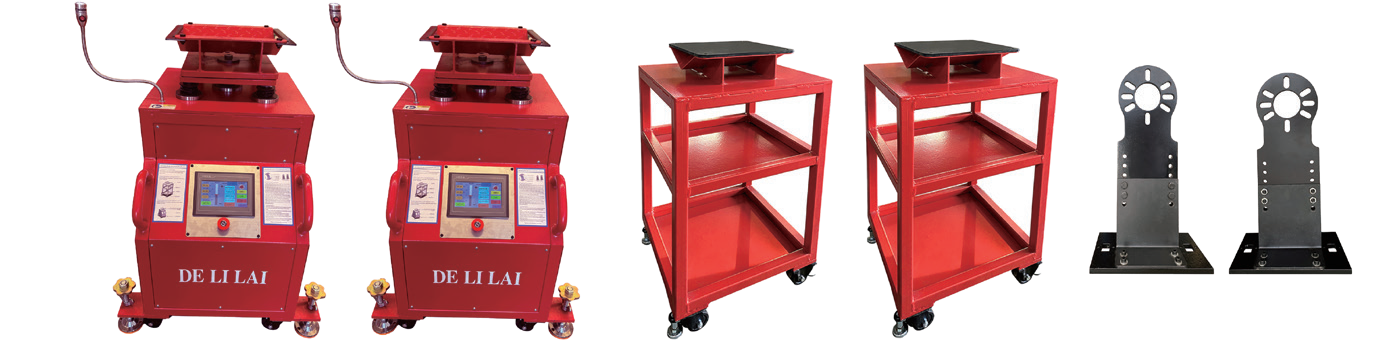

| Equipment configuration: | two main workers,two support frames,two stress releases |
| Gross weight ： | 820kg |
| Motor power: | 3kw |
| Control mode: | Nicrocrystal regulator |
| Main worker packing size: | 830*830*1130mm |
| support frame packing size: | 830*600*1130mm |
| colour: | customized |
1.Driven by multi frequency high torque motor,lifting capacity 4500kg.
2.Powered by 220/380V voltage,providing a super large driving force.
3.Equipped with safety emergency stop button, one click shutdown lock and safety leakage protection
device.
4.The device can simulate different bumpy road surfaces through the microcrystalline regulator, ,
achieves precise detection.
5.Touch screen is elegant and high-end, making operation more convenient.
6.Equipped with searchlights for convenient illumination.
7.Precision drive connection, belt drive, good silence effect, providing the best detection environ
ment.
8.The equipment is supported and adjusted at 8 points to ensure stability.
9.Total six sets of equipment, equipped with stress release devices, more comprehensive and
accurate in detection.
