| technical parameter | |
| Rim diameter | 1” – 28” |
| Maximum wheel weight | 70 kg |
| Maximum wheel diameter | 1118 mm |
| Rim width | 1,5” – 20” |
| balancing precision | ±1g |
| power of motor | 90W |
| Power Supply | 100/230V 1ph |
| Measuring speed | 140rpm |
| Equilibrium period | 7s |
| Secondary disassembly | ≤5g |
| Machine size | 1550x1160x1243 mm |
| Packing size | 1070x760x1150 mm |
| net weight | 132 kg |
| gross/package/rough weight | 170kg |
| Quantity of 40-foot containers | 66 sets |

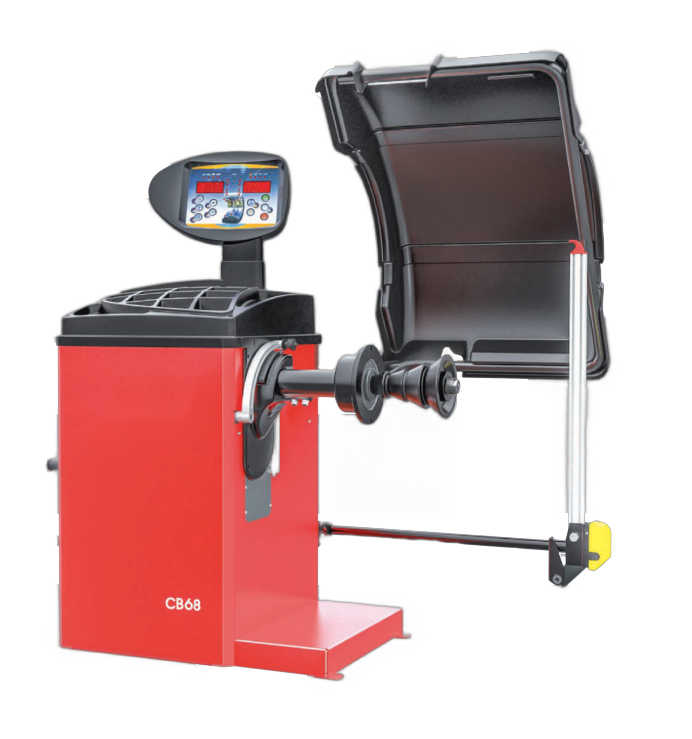

Tire dynamic balancing machine with Italian software technology
Three-valued tire parameters are automatically input, which greatly improves work efficiency.
The standard 40mm screw rod can be used for the unique design of motorcycle balance mode, and the motorcycle fixture can be selected.
LED light box lighting, not afraid of dark operation
The electromagnetic positioning brake can accurately locate the position of the inside and outside unbalance, so as to ensure more accuracy when sticking the lead block.
It has the function of sticking lead at six o’clock and laser indication, and it is convenient, fast and intelligent to switch the dynamic balance STD/ aluminum alloy intelligent mode ALS2.
