Rim diameter 10 “-24”
The maximum wheel weight is 200 kg.
Maximum wheel diameter 1200mm
Rim width 1,5 “-20”
Balance accuracy 1g (car)/10g (truck)
power of motor 0.55kW
Power Supply  100/230V/380V 1ph
Measure the rotating speed at 100rpm (car)/200rpm (truck).
Balance period 9s (car)/20s (truck)
Secondary disassembly ≤5g
Machine size 1330x1280x1320 mm
Packing size 1300x990x1150 mm
Net weight 220 kg
Gross weight 270 kg
40-foot container quantity 42 sets

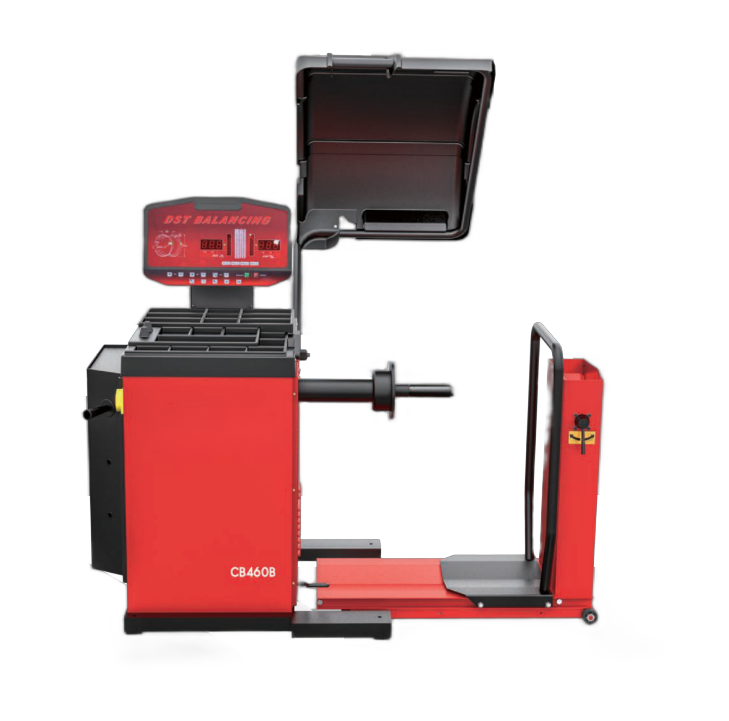

The new product of tire dynamic balancer with completely independent intellectual property rights increases the display data of digital tube, which is convenient for users to watch
With truck and car switching function.
Unbalance can be selected in decimal or decimal system according to customers’ needs. There are three kinds of aluminum alloy rim selection modes and static balance modes.
With foot brake, the position of the counterweight can be accurately positioned, and the conversion function between inch and millimeter, gram and ounce can be realized.
Equipped with a tire lift car, it saves time and effort when installing tires, and the display window of digital tube is clear and the data is more intuitive.
