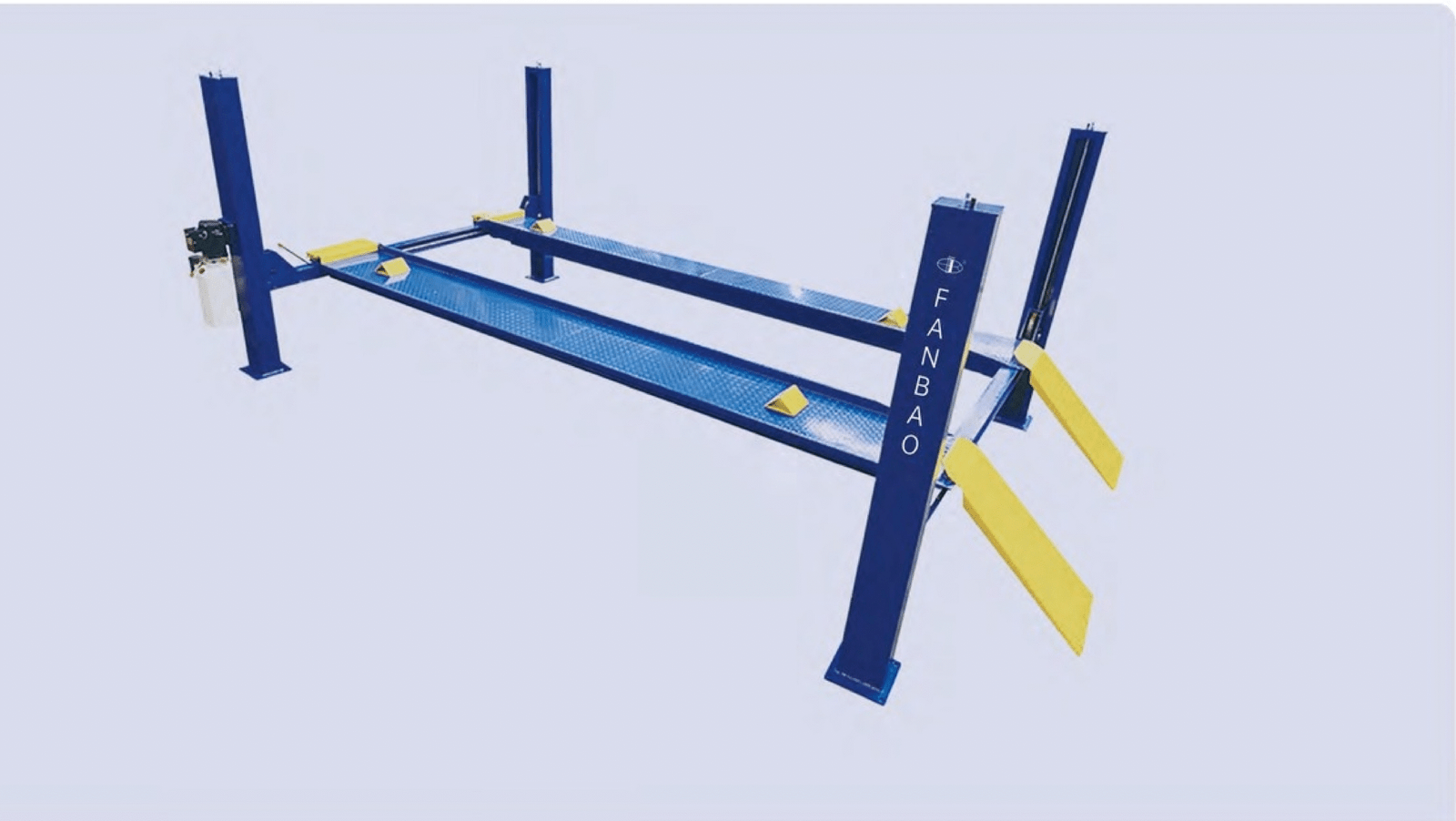

4QJY4.0-A four post lift

Category:

● One side release for safety locks,easy for descent operation

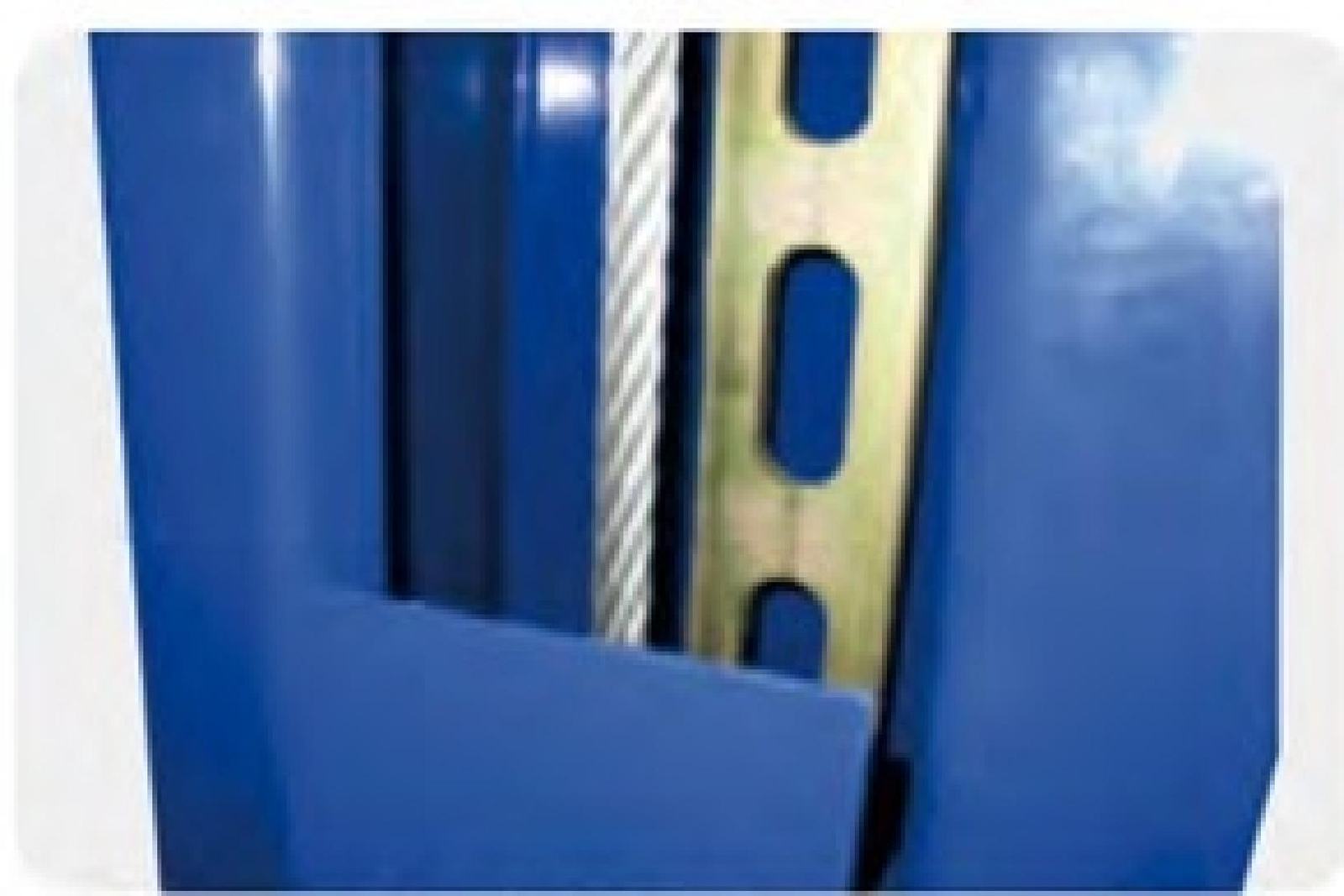

● Mechanical locks automatically engaged into position in ascending process

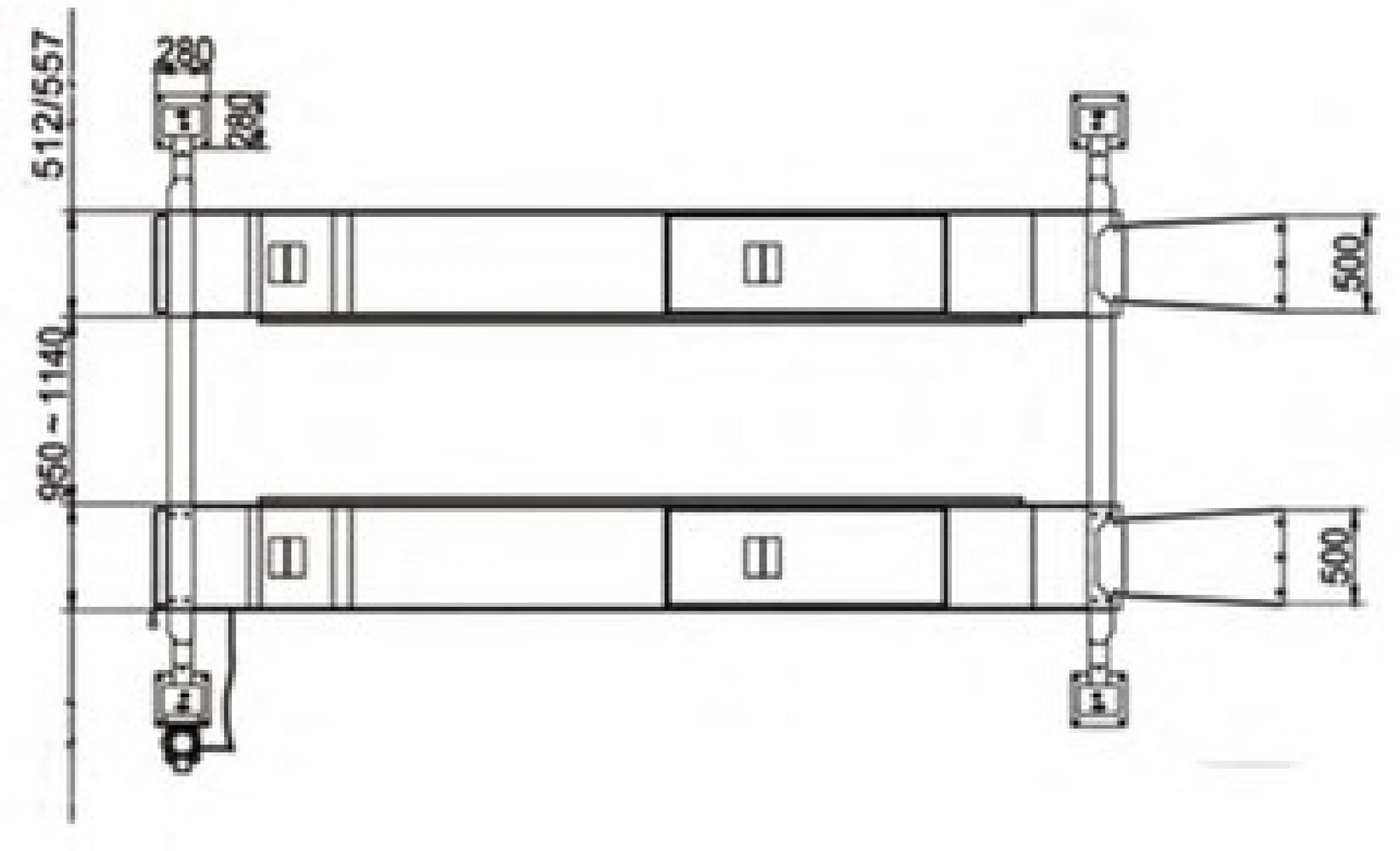

● 4612mm(200 3/5″)runway length for 4000kg&5094mm(200 3/6″)runway length fro 5000kg capacity

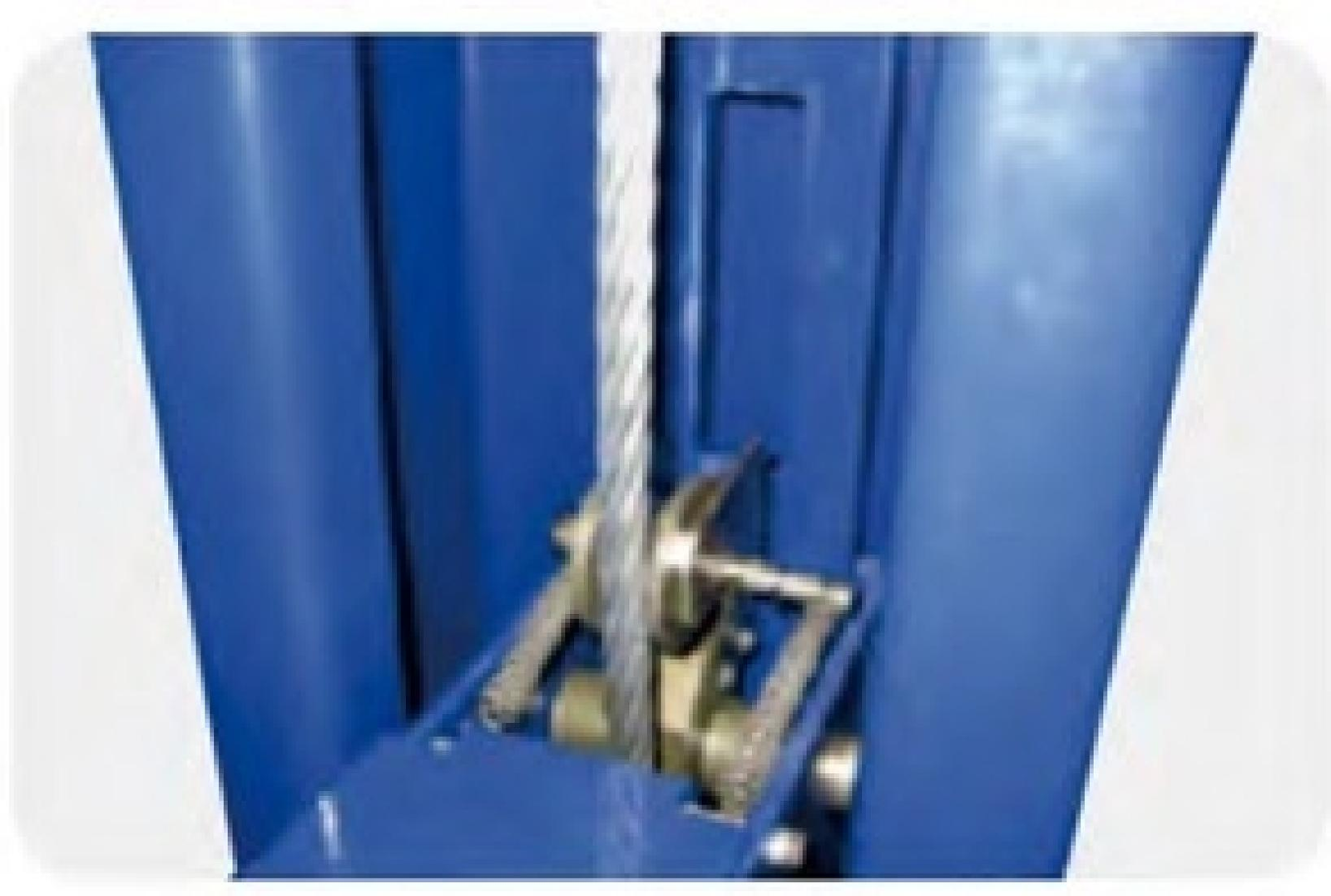

● Self-lubricating pulleys and pre-tensioned wire rope for extended service life
● Simple but reliable design.User friendly,easy on-site
● Installation and less demanding on foundation
● Safety device works immediately in case a cable slacks or fails

Main technical parameter
Model4QJY4.0-A4QJY5.0-A4QJY6.0-A4QJY7.0-A
Capacity4000kg5000kg6000kg7000kg
Min.Ground Clearance150mm150mm150mm150mm
Lifting height1750mm1750mm1750mm1750mm
Power of motor2.2kw2.2kw3kw3kw
Power supply220V/380V220V/380V220V/380V220V/380V
Outer dimensions5923*3320*2118mm5923*3320*2118mm5923*3320*2118mm5923*3320*2118mm
Net weight1098kg1498kg1700kg1900kg
