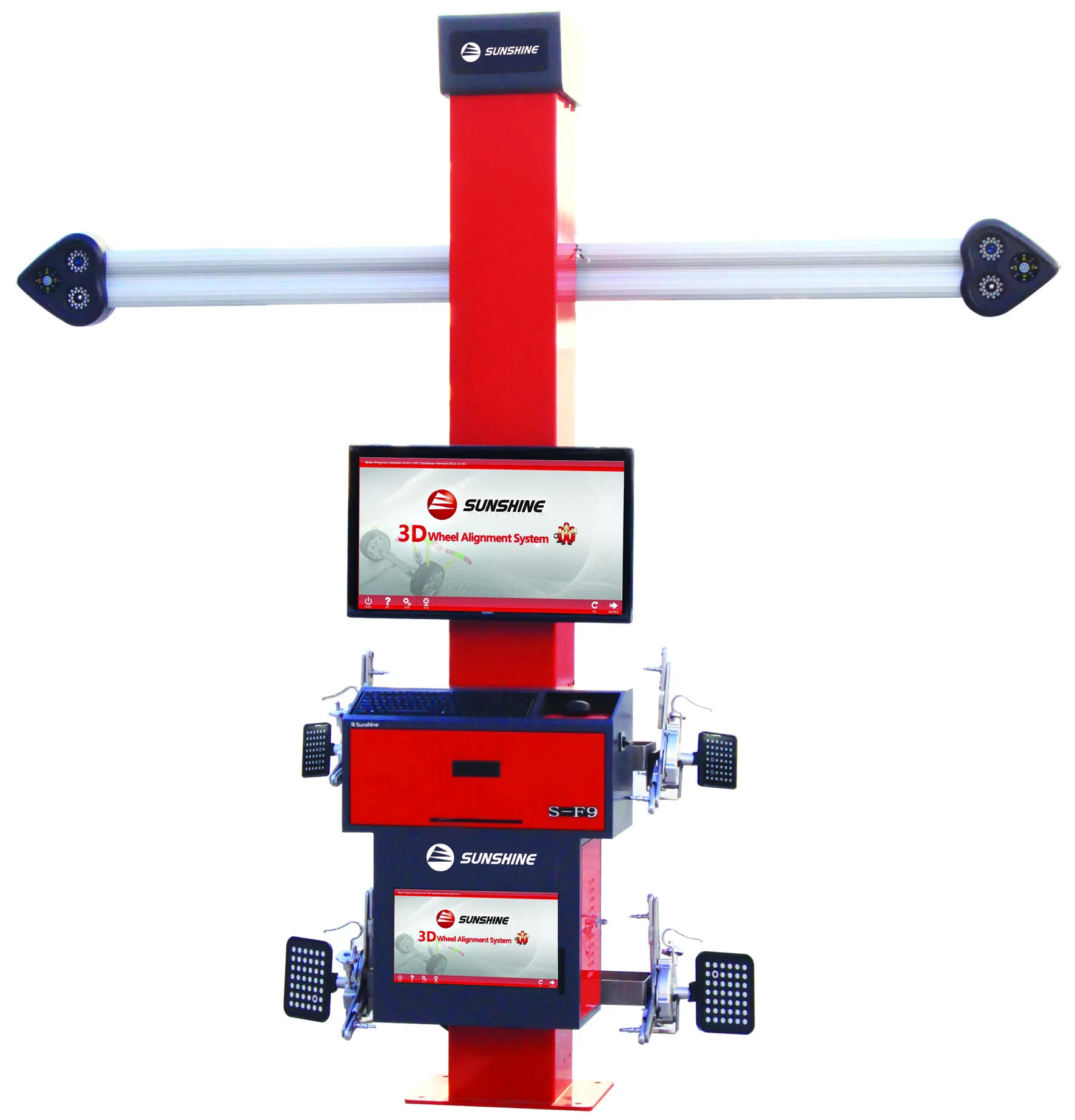

Products Advantages:
Automatic tracking beam,technician can make measurement and adjustment on different of lifting levels . 6.4MP high accuracy camera.
with 32〞LED TV and 19″LCD display, fully shows glamour of 3D technology. Self-developed ultimate 3D software, showing honour of high-level customer.
Adopt exclusive height target plate and software, precise measurement of vehicle body height.
Camera automatic tracking：
Precise measurement of vehicle body height
Suitable for checking plenty of vehicle models.
Standard Configuration:
Deluxe cabinet, Electric movable post, DELL computer , Mini Target plates, Three-fingers clamp, Brake fixer, Steering wheel fixer,Wedge pads, Aluminum alloy turntables ,Turntable transition blocks, Exclusive height target plate.
Parameters measurement such as camber, Caster, Kingpin inclination, Toe-in & Toe-out, Set back, Thrust angle.
Technical data
Measurement | Display | Camber | Caster | Kingpin | Toe-in & | Set | Thrust | Wheel | Axis |
Accuracy | 1´/0.01°0.1mm | ±2´ | ±6´ | ±6´ | ±2´ | ±2´ | ±2´ | ±2mm | ±2mm |
Measurement | ±10° | ±20° | ±23° | ±20° | ±5° | ±5° |
|
|
◆ Extension Functions:
Removing Tire Adjustment(Purchasing Rim adapter),
Body Dimension Measurement,
Steering Wheel Adjustment,
Engine Bay Adjustment,
Toe Curvature Measurement(Purchasing B5 Tool Kits),
Lock Toe Adjustment,
Camber Measurement of Zero Toe,
Scrub Radius Measurement,Rolling Radius Measurement,
Body Height Measurement
Automatic tracking beam
