| Outer Clamp | 10”-22” |
| Inter Clamp | 12”-24” |
| Max.Wheel Width | 350mm |
| Max.Wheel Diameter | 1040mm |
| Air Supply | 8-10bar |
| Motor Parameters | 110V/220V/380V |
| Package Size | 1100*980*860+1250*400*450or1100*1000*1760 |
| Product weight | 420KG |

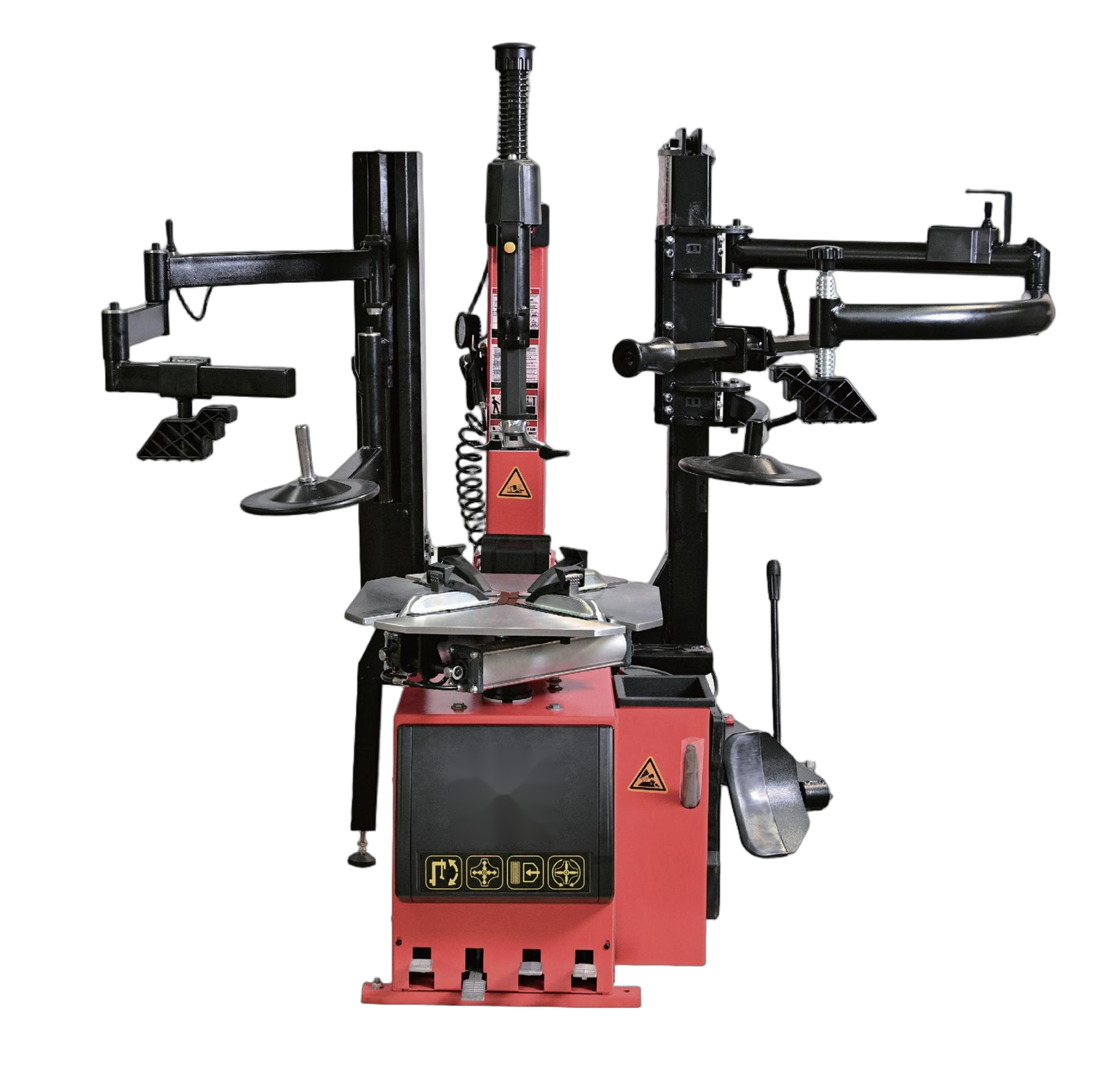

Standard configuration includes left and right dual auxiliary arms,which can be used in conjunction with each other,with dualtrays and three pressure points for flexible adjustment.Tire disassembly and assembly are easier
Backwardctilting design,one clicklocking of the wheelhub in the correct position,automatic retreat to a safe distance to prevent scratching of the wheel hub/and minimal deformation of the column when disassembling and assembling tires.
Adopting a composite boxstructure,the rear is reinforced with double verticalbars,and the bottom of the column will not deform significantly due to stress,ensuring structural stabikity.
Detachable foot pedal bracket,easy to disassemble and replace in case of after-sales service.
